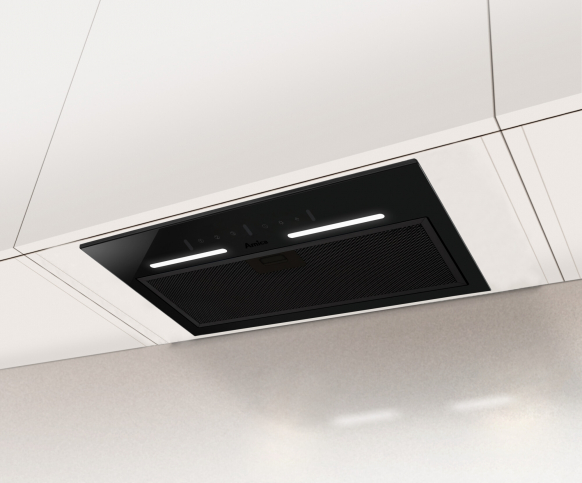

AGPG550CN
AGPG550CN
Specification
FEATURES
| Air flaps Yes | BLDC motor Yes | Delay Yes |
| Maximum time of delay 15 ' | Panel - language version Pictograms | Protection class of electric shock I_Class |
| Low noise level No |
Equipment
| Carbon filter(s) included Yes | Gesture control Yes | Number of carbon filters 2 |
| Number of grease filters 1 | Number of layers in grease filter 5 | Number of speed 3 |
| Type of control Sensor | Type of grease filters Aluminium frame | Carbon filter type FWP 18 |
Technical data
| Frequency 50 | Air flow at 1 speed - extractor by EN 61591 364 m3/h | Air flow at 2 speed - extractor by EN 61591 421 m3/h | ||||||||||||||||||||||||||||||||
| Air flow at 3 speed - extractor by EN 61591 510 m3/h | Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 510 m3/h | Air Flow at Minimum Speed in Normal Use 364 m3/h | ||||||||||||||||||||||||||||||||
| Air Flow Rate at Best Efficiency Point - Q BEP 314 m3/h | Annual energy consumption 72.6 kWh | Annual energy consumption 72.6 kWh | ||||||||||||||||||||||||||||||||
| Average Illumination of the Lighting System on the Cooking Surface - E middle 83 lux | Container qty 40'HQ 782 | Control panel on one side/two sides One side | ||||||||||||||||||||||||||||||||
| Dimensions of grease filter 492 x 162.5 mm black | Display color White | Distance from light cover to wall 63 mm | ||||||||||||||||||||||||||||||||
| Distance to electric hob 450 mm | Distance to gas hob 650 mm | Electric Power Input at Best Efficiency Point - W BEP 133 W | ||||||||||||||||||||||||||||||||
| Energy Efficiency Index - EEI hood 72.6 | Fluid Dynamic Efficiency - FDE hood 20.2 | Fluid Dynamic Efficiency Class C | ||||||||||||||||||||||||||||||||
| Grease Filtering Efficiency - GFE hood 67 % | Grease Filtering Efficiency Class C | Gross volume 0.0855 m³ | Internal/external motor Internal | Main lighting colour temperature [K] 6500 | Lighting Efficiency - LE hood 20.8 lux/W | Lighting Efficiency Class B | Lighting Efficiency Class B | Maximum Possible Air Flow 510 m3/h | Motor unit rated power 150 W | Motor type/model E series | Net depth 290 mm | Net height max 256 mm | Net height min 256 mm | Net weight 7.8 kg | Net width 550 mm | Noise level at 1 speed - extractor by EN 60704-2-13 62 dB | Noise level at 2 speed - extractor by EN 60704-2-13 65 dB | Noise level at 3 speed - extractor by EN 60704-2-13 67 dB | Nominal Power of the Lighting System - W L 4 W | Number of motor units 1 | Number units of main lighting 1 | Air exhaust diameter 150 mm | Type of plug or cable Euro plug | Power Consumption in Standby Mode - Ps 0.42 W | Power cabel length 120 cm | Power rating 158 W | Power Supply Voltage 230V | Power unit of main lighting 5 W | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 67 dB | Sound Power Emission at Minimum Speed Available in Normal Use 62 dB | Noise level 67 dB | Time Increase Factor - f 1.3 | Type of main lighting LED strip | Type of main lighting LED strip |
